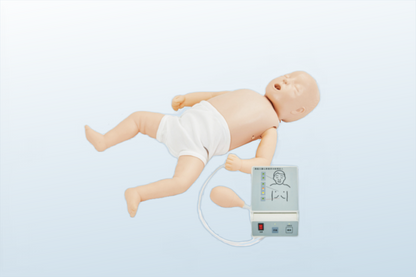

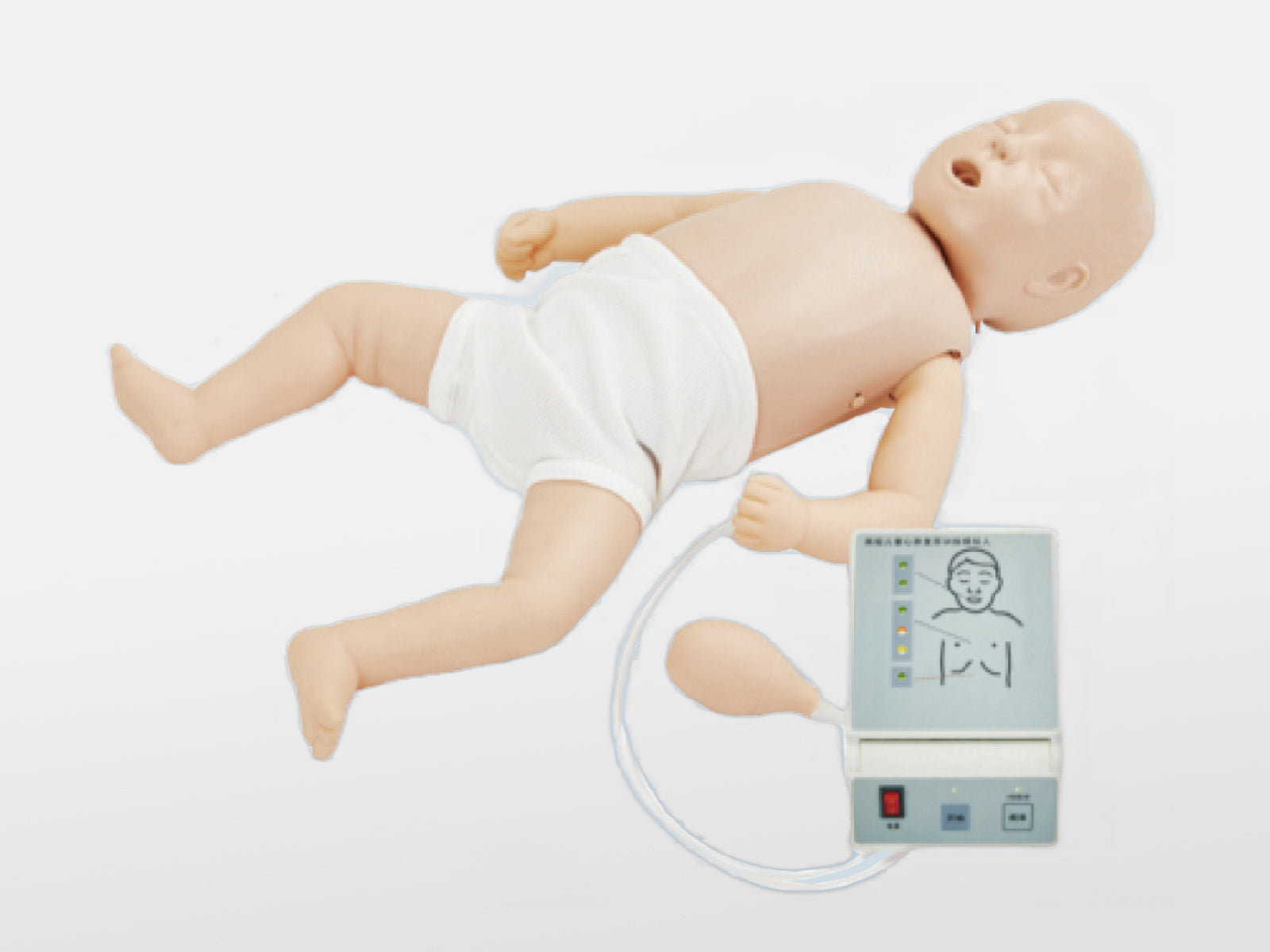

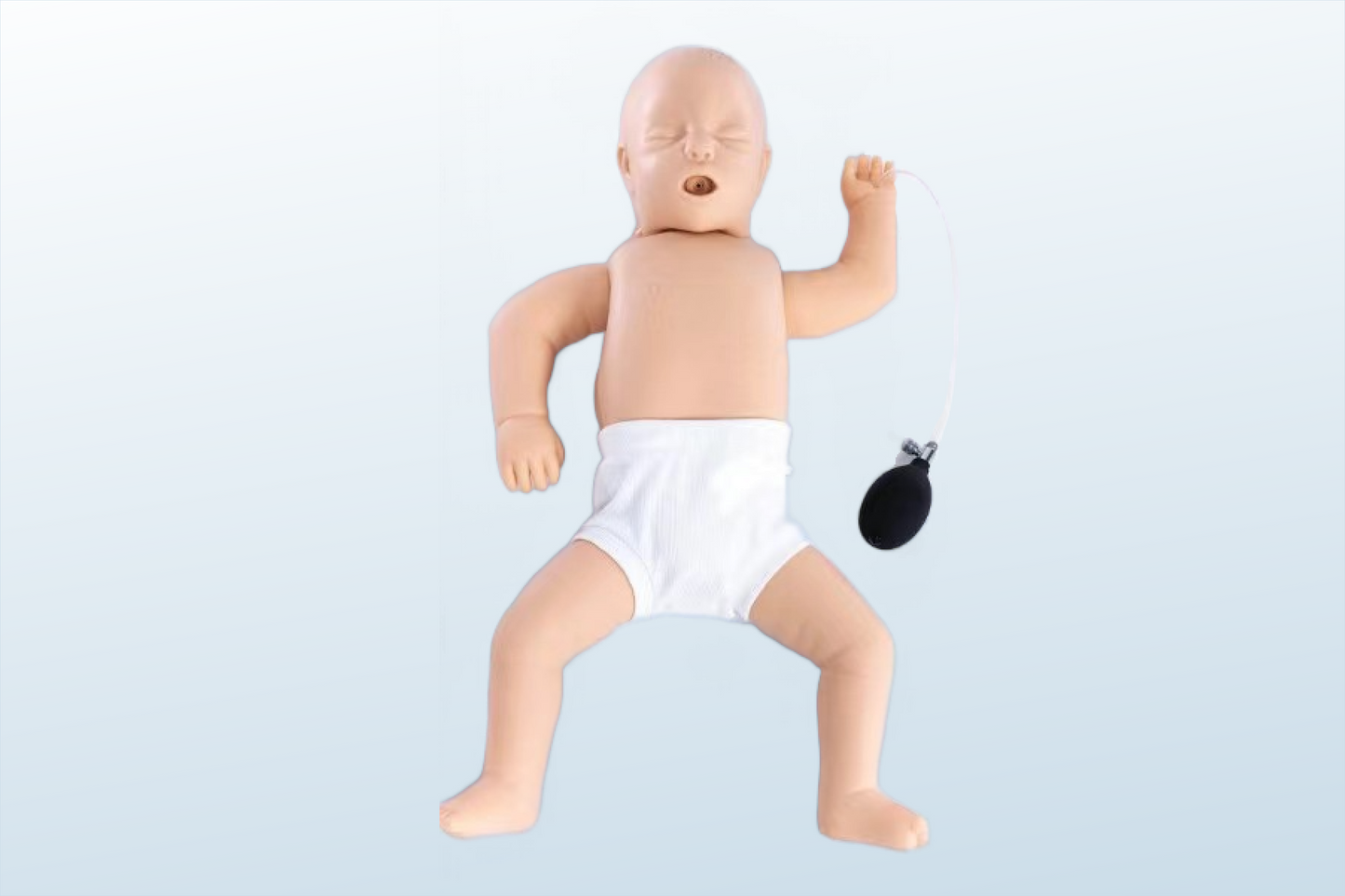

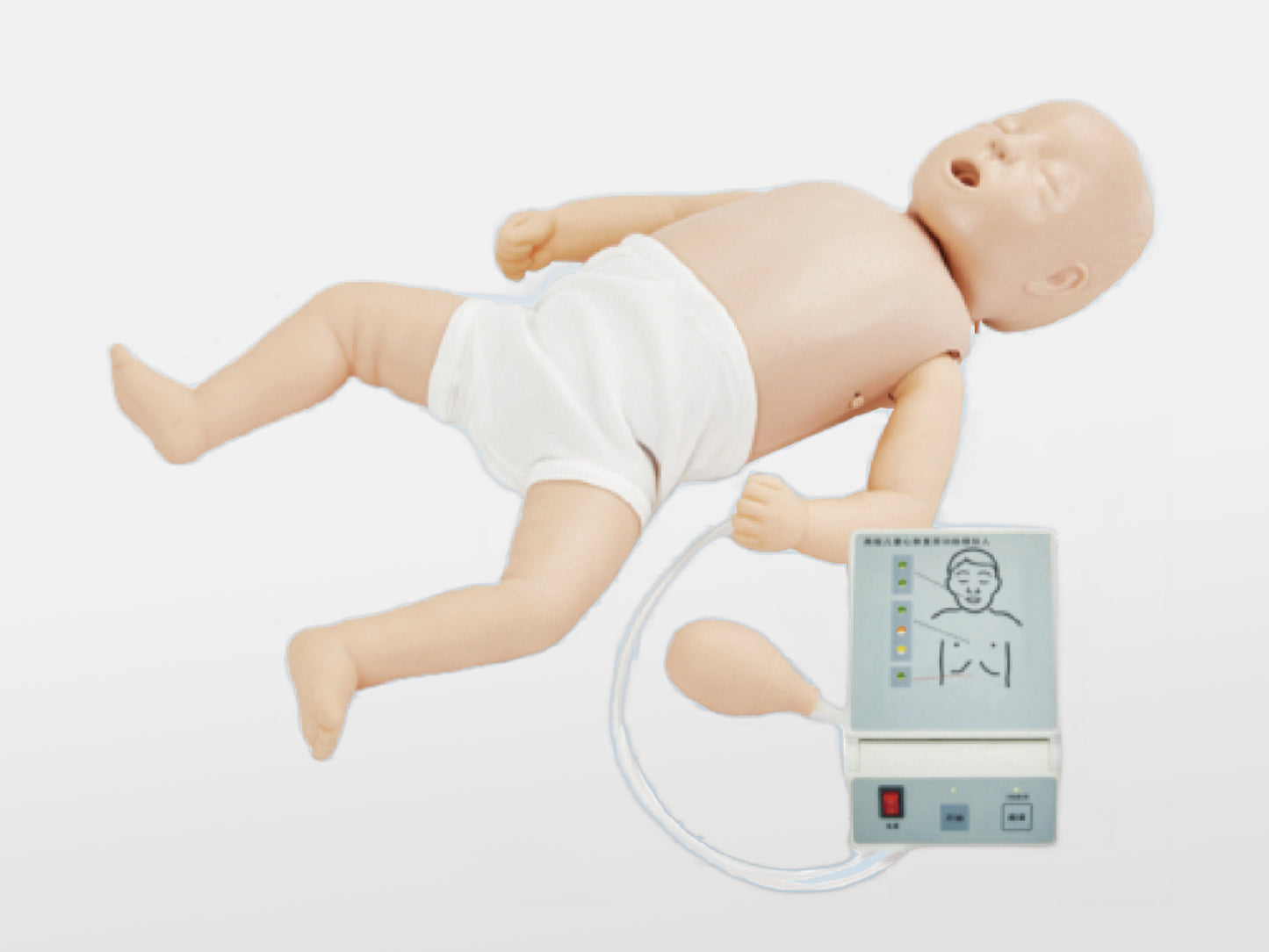

Newborn,CPR simulator

Product No.: PC-CLE026

Overview

This product is designed based on the anatomical and physiological characteristics of newborns. Its core modules include analog and electronic displays, which can perform neonatal cardiopulmonary resuscitation training and achieve electronic monitoring of the air volume during artificial respiration and set depth when estimating finger position.

Anatomy

The model simulates a full-term newborn, with real hand feeling, lifelike shape, beautiful appearance, soft and elastic skin, and accurate position of body surface marks.

Realism

Realistic head tilt and chin lift for opening airway, mouth to mouth and BVM can be practiced on this manikin.

Detection of insufficient chest rebound during compression and accompanied by voice prompts to the user.

Digital display of operating time.

There are digital count displays and voice broadcast prompts for correct and incorrect manual finger position chest compressions:

The correct compression depth is at least 1/3 of the front-to-back diameter of the chest, which is about 4cm;

Insufficient compression depth is displayed by a yellow indicator light and a voice broadcast prompt;

The correct compression depth is displayed by a green indicator light and there is a voice broadcast prompt;

If the compression depth is too deep, it will be displayed by a red indicator light and there will be a voice broadcast prompt;

Both correct and incorrect artificial mouth-to-mouth resuscitation (inflating) are displayed with digital count display and voice broadcast prompts:

The correct amount of tidal air to insufflate is 30ml-50ml

If the tidal volume injected is too small, it will be displayed by a yellow indicator light and there will be a voice broadcast prompt;

The correct tidal volume is displayed by the green indicator light and there is a voice broadcast prompt;

If the tidal volume injected is too large, it will be displayed by a red indicator light and there will be a voice broadcast prompt;

The insufflated tidal volume is too fast or too large, causing gas to enter the stomach. The insufflation into the stomach indicator light will display and there will be a voice broadcast prompt;

Operating frequency: latest international standard: 100-120 times/min.

The electronic controller can pause and reset CPR operation, adjust the volume, and mute the sound with one button.

Check the reaction of the brachial artery: pinch the pressure ball with your hand to simulate the pulse of the brachial artery.

Working status: Use input 110V/220V output 12V/2A external power supply, optional lithium battery.

Cleaning

Clean the simulator with a damp cloth, using warm water and neutral detergent. Do not use any abrasive cleaning agents or materials.

Allow trainer to completely dry before storing.

Keep away from sunshine.
